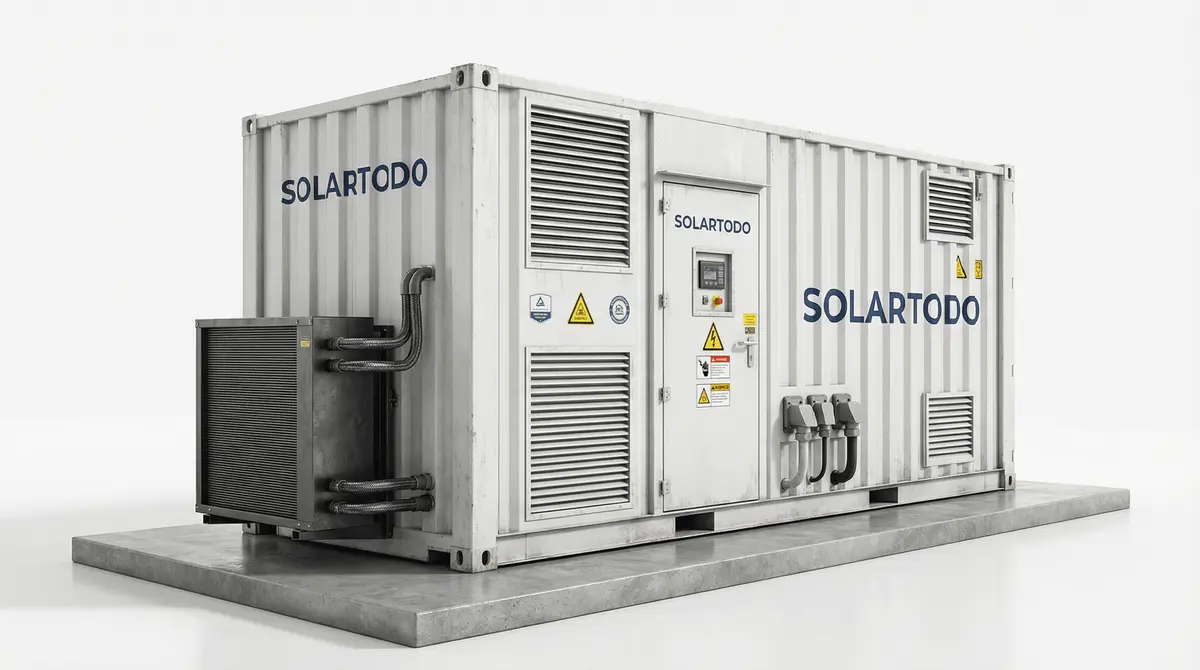

LFP Battery Energy Storage Systems System Design: LFP…

Summary

LFP Battery Energy Storage System design typically targets 6,000+ cycles, 90% depth of discharge, and >90% round-trip efficiency, while fire-safe deployment depends on UL 9540/9540A, IEC 62619, and NFPA 855-aligned spacing, ventilation, detection, and shutdown architecture.

Key Takeaways

• Select LFP cells with 6,000+ cycle life and 90% depth of discharge for daily-cycling Battery Energy Storage System (BESS) projects that need lower degradation and predictable total cost of ownership.
• Match power and energy at ratios such as 0.5C to 1.0C, because a 1MW/2MWh or 100kW/200kWh design changes inverter sizing, thermal load, and project ROI.
• Verify compliance with UL 9540, UL 9540A, IEC 62619, and IEEE 1547 before procurement to reduce permitting delays and improve insurer acceptance in 2025-2026 tenders.
• Design thermal management to keep battery temperature uniform within tight operating bands, because even a 5-10°C imbalance can accelerate cell aging and increase safety risk.
• Integrate multi-layer protection including BMS, smoke detection, gas detection, HVAC interlocks, and emergency stop circuits to limit propagation risk at module, rack, and container level.
• Compare EPC pricing in three tiers—FOB supply, CIF delivered, and EPC turnkey—and use volume discounts of 5% at 50+, 10% at 100+, and 15% at 250+ units for fleet procurement.
• Calculate payback against diesel or peak-demand alternatives, as hybrid LFP systems can cut generator runtime by 20% to 45% or reduce EV charging interconnection upgrades by 30% to 60%.
• Specify maintenance intervals every 6-12 months for firmware, insulation, thermal, and protection checks to preserve >90% usable performance and support 10-year warranty compliance.

LFP Battery Energy Storage System Design Fundamentals

LFP Battery Energy Storage System design balances 6,000+ cycle life, 90% depth of discharge, and >90% round-trip efficiency with protection architecture sized for the project’s real load profile.

LFP batteries are widely selected for stationary storage because they offer a strong combination of thermal stability, long cycle life, and lower cobalt-related supply risk compared with several other lithium-ion chemistries. For B2B buyers, the design question is not only whether LFP is safe, but whether the full Battery Energy Storage System (BESS) architecture converts those chemistry advantages into bankable field performance. That means cell selection, module layout, battery management, thermal control, enclosure design, and fire mitigation must be engineered as one system.

According to IEA (2024), battery storage deployment continues to accelerate as grids add more variable renewable energy and flexible demand. According to IRENA (2024), storage is increasingly required where renewable penetration rises above roughly 20% to 30% in local power systems. The International Energy Agency states, "Battery storage is becoming a key flexibility option in power systems," which is directly relevant to EPCs, utilities, and industrial operators evaluating LFP-based projects.

For most commercial and utility projects, the first design step is defining the duty cycle. A 1-hour system optimized for frequency response has very different current, cooling, and PCS requirements than a 2-hour solar shifting system or a 4-hour peak shaving asset. SOLAR TODO typically positions LFP systems across use cases ranging from 100kW/200kWh off-grid industrial hybridization to 1.5MW/3MWh renewable integration, showing how the same chemistry can serve very different operating strategies.

Why LFP chemistry is often preferred

LFP chemistry is commonly preferred for stationary storage because it combines lower thermal runaway severity, 6,000+ cycle life, and strong daily-cycling economics at 0.5C to 1.0C operating ranges.

Compared with NMC in many stationary applications, LFP usually offers lower energy density but better thermal stability and longer useful life under repetitive cycling. That tradeoff is often acceptable in containerized or cabinet-based systems where footprint is less critical than safety, warranty, and cost per delivered kWh over 10 years. For project owners, the relevant metric is not nameplate density but usable energy delivered across the contract term.

According to NREL (2024), storage project economics are increasingly shaped by degradation, duty cycle, and augmentation strategy rather than battery capex alone. In practical terms, a lower-degradation LFP platform may reduce replacement risk and simplify long-term performance guarantees. For procurement teams, that can improve lender confidence and reduce lifecycle uncertainty.

Core design inputs before equipment selection

Battery Energy Storage System sizing should start with 4 inputs—load profile, charge source, discharge duration, and site constraints—because these determine whether 0.5C, 1.0C, or hybrid operation is technically and financially optimal.

The most important pre-design inputs include:

• Required power in kW or MW
• Required usable energy in kWh or MWh
• Target discharge duration, usually 1, 2, or 4 hours
• Daily cycle count and annual throughput
• Grid-tied, off-grid, or hybrid generator operation
• Ambient temperature, altitude, dust, humidity, and corrosion exposure
• Local code requirements and insurer expectations
• SCADA, EMS, and utility interconnection requirements

A mining camp with high diesel costs may prioritize generator runtime reduction and black-start support. An EV charging plaza may prioritize demand clipping and transformer deferral. A wind farm may prioritize ramp smoothing and settlement-window shaping. The chemistry can stay the same, but the design basis must change.

LFP Batteries Selection Criteria for BESS Projects

LFP batteries should be selected using a weighted matrix covering cell format, cycle life, C-rate, thermal performance, certification, and supplier bankability rather than headline price per kWh alone.

Cell selection is the foundation of the complete system because weak consistency at cell level can cascade into imbalance, thermal stress, and lower warranty confidence at pack level. Buyers should request data on cycle life at specified depth of discharge, temperature range, and end-of-life threshold, because "6,000 cycles" is meaningless without test conditions. A bankable supplier should also provide traceability, batch consistency records, and quality control methods.

According to IEC 62619 requirements and common utility procurement practice, industrial lithium battery products should demonstrate electrical, mechanical, and abuse-test compliance suitable for stationary use. According to UL Solutions (2024), listing and system-level evaluation remain essential because fire behavior depends on integration, not just cell chemistry. UL states, "Energy storage systems should be evaluated as installed systems," which is why project teams should avoid relying only on cell datasheets.

Cell, module, rack, and container selection

A robust LFP Battery Energy Storage System uses certified cells, monitored modules, isolated racks, and tested enclosures so that a single-cell fault does not escalate into rack-level or container-level propagation.

Selection checkpoints should include:

• Cell chemistry: LFP prismatic cells are common for stationary systems
• Cycle life: 6,000+ cycles at stated DoD and temperature
• Usable DoD: typically up to 90% for commercial operation
• C-rate: confirm continuous and peak charge/discharge capability
• BMS architecture: cell-level voltage and temperature monitoring
• Thermal system: air-cooled or liquid-cooled based on power density
• Enclosure rating: ingress protection, corrosion class, seismic needs
• Communications: Modbus, CAN, EMS, SCADA compatibility
• Warranty: usually 10 years with throughput or retained-capacity terms

Liquid cooling is increasingly preferred for higher-power or high-ambient sites because it improves temperature uniformity and can support tighter degradation control. Air cooling may still be suitable for moderate climates and lower C-rate operation, but designers should model seasonal extremes, not nominal conditions. A battery room that performs well at 25°C may degrade rapidly at 40°C with repeated peak dispatch.

Typical specification comparison

A practical LFP selection process should compare at least 8 technical and commercial parameters so procurement teams can align safety, performance, and warranty with the target application.

Parameter	Entry Commercial BESS	Industrial Hybrid BESS	Utility Renewable BESS
Typical size	250kWh-500kWh	100kW/200kWh to 500kW/1MWh	1.5MW/3MWh and above
Typical duration	1-2 hours	2 hours	2 hours
Chemistry	LFP	LFP	LFP
Cycle life	5,000-6,000+	6,000+	6,000+
Usable DoD	85%-90%	90%	90%
PCS efficiency	95%-96%	>96% typical	>96% typical
Cooling	Air or liquid	Air or liquid	Liquid preferred
Warranty	5-10 years	10 years typical	10 years typical

SOLAR TODO uses this kind of comparison framework when discussing application fit with EPCs and project developers. The aim is to avoid overspecifying expensive features for simple peak shaving or underspecifying safety and thermal controls for harsh industrial duty.

Fire Safety Standards and Protection Architecture

LFP fire safety depends on tested system integration, because UL 9540A propagation results, NFPA 855 installation rules, and IEC 62619 battery safety requirements are more decisive than chemistry claims alone.

A common procurement mistake is assuming that LFP chemistry automatically solves fire risk. LFP generally offers better thermal stability than several other lithium-ion chemistries, but any high-energy DC system can still fail due to overcharge, internal short, external damage, poor cooling, contamination, or installation error. Fire safety therefore requires a layered architecture that prevents faults, detects abnormal conditions early, isolates affected sections, and limits propagation.

According to NFPA 855 (2023), energy storage installations require attention to spacing, ventilation, fire detection, emergency planning, and technology-specific hazards. According to UL 9540A testing protocols, thermal runaway behavior must be assessed at cell, module, unit, and installation level. For insurers, AHJs, and utilities, these documents are often central to permit and risk review.

Key standards buyers should verify

Battery Energy Storage System fire-safe procurement should verify at least 5 core standards—UL 9540, UL 9540A, IEC 62619, NFPA 855, and IEEE 1547—before final design freeze.

The most relevant standards and codes typically include:

• UL 9540: system-level safety standard for energy storage systems and equipment
• UL 9540A: test method for evaluating thermal runaway fire propagation
• IEC 62619: safety requirements for secondary lithium cells and batteries for industrial use
• NFPA 855: installation standard for stationary energy storage systems
• IEEE 1547-2018: interconnection and interoperability for distributed energy resources
• IEC 62933 series: broader electrical energy storage system guidance
• Local fire code and utility interconnection requirements

The National Fire Protection Association states, "Stationary energy storage systems present unique challenges to emergency responders," reinforcing why emergency response planning, signage, and remote shutdown are not optional accessories. For B2B projects, compliance documentation should be assembled before shipment, not after site delivery.

Practical fire protection design measures

Effective LFP fire protection combines BMS controls, smoke and gas detection, HVAC shutdown logic, compartmentalization, and emergency isolation to reduce escalation probability and improve responder safety.

A practical fire safety design usually includes:

• Cell and module temperature monitoring
• Overvoltage, undervoltage, and overcurrent protection
• DC contactors and fuse coordination
• Smoke detection and off-gas detection where required
• HVAC control linked to alarm states
• Fire suppression strategy aligned with local code and tested design basis
• Rack or cabinet compartmentalization
• Emergency stop and remote shutdown interfaces
• Clear access, setbacks, and service corridors
• Commissioning tests and emergency response documentation

Designers should not treat suppression as the only barrier. Prevention and early detection are often more valuable than post-event intervention. In many projects, the strongest risk reduction comes from quality cells, conservative operating windows, thermal uniformity, and fast fault isolation.

EPC Investment Analysis and Pricing Structure

LFP Battery Energy Storage System EPC economics are usually evaluated across 3 tiers—FOB supply, CIF delivered, and EPC turnkey—with payback often driven by 20% to 45% diesel reduction or 30% to 60% demand-charge mitigation.

For B2B buyers, price comparison is only meaningful when scope is normalized. A low battery price may exclude PCS, EMS, fire systems, freight, commissioning, or grid studies, while a turnkey EPC offer may include all of them. SOLAR TODO recommends that buyers compare commercial offers in three tiers so procurement, finance, and engineering teams can evaluate true delivered cost.

What EPC turnkey delivery includes

EPC turnkey delivery usually includes battery containers or cabinets, PCS, EMS, transformer if required, protection panels, fire safety systems, installation supervision, testing, commissioning, and performance documentation.

Typical scope elements are:

• Engineering and single-line design
• Battery Energy Storage System (BESS) supply
• PCS/inverter and EMS integration
• Fire detection and suppression package
• Transformer, switchgear, and protection coordination
• SCADA and communications integration
• Site installation and commissioning support
• Training, manuals, and warranty documentation

Three-tier pricing structure and commercial terms

A clear 3-tier pricing model helps buyers compare ex-factory supply, landed cost, and full delivered project cost without mixing logistics, duties, and construction scope.

Pricing tier	What it includes	Best for
FOB Supply	Factory supply only, export packing, standard documents	EPCs handling freight and installation
CIF Delivered	FOB plus ocean freight and insurance to named port	Importers wanting landed visibility
EPC Turnkey	Delivered equipment plus engineering, installation, commissioning, and integration	Owners seeking single-point responsibility

Indicative commercial guidance for fleet or program procurement:

• 50+ units: 5% discount
• 100+ units: 10% discount
• 250+ units: 15% discount
• Payment terms: 30% T/T + 70% against B/L, or 100% L/C at sight
• Financing available for large projects above $1,000K
• Commercial contact: cinn@solartodo.com

ROI logic by application

LFP Battery Energy Storage System ROI is strongest where electricity tariffs, diesel logistics, or interconnection constraints create avoidable costs above roughly $0.08/kWh to $0.25/kWh.

For remote industrial sites, hybrid solar-diesel-storage systems can reduce generator runtime by 20% to 45%, especially where fuel transport premiums are high. For EV charging sites, storage can reduce required utility upgrade capacity by 30% to 60%, accelerating revenue start dates. For renewable plants, storage can improve dispatch quality, reduce curtailment, and support settlement optimization.

SOLAR TODO commonly discusses ROI in terms of avoided diesel fuel, reduced maintenance, lower demand charges, deferred transformer upgrades, and improved renewable utilization. Payback varies by use case, but projects with high diesel dependence or severe peak-demand charges often show the fastest returns. Buyers should request a site-specific dispatch model rather than rely on generic battery payback claims.

Applications, Selection Guide, and FAQ

LFP Battery Energy Storage System selection should align 100kW-1.5MW power blocks, 200kWh-3MWh energy blocks, and code-compliant fire design with the site’s actual operating profile and permitting pathway.

In practice, buyers should shortlist vendors that can provide test reports, warranty logic, thermal design data, and integration support rather than only low-price battery modules. A complete selection guide should compare application fit, standards compliance, after-sales support, and expansion flexibility. SOLAR TODO is relevant here because it serves B2B export markets where documentation, logistics, and offline technical quotation matter as much as hardware.

A simple application mapping approach is useful:

• Off-grid mining or quarry loads: prioritize hybrid generator control, dust resistance, and black-start capability
• EV charging hubs: prioritize high-power PCS, rapid response, and demand clipping algorithms
• Wind or solar plants: prioritize EMS dispatch, grid code compliance, and renewable smoothing
• Commercial facilities: prioritize peak shaving, backup power, and transformer deferment

FAQ

Q: What is the main advantage of LFP batteries in a Battery Energy Storage System (BESS)? A: The main advantage is the balance of safety, cycle life, and usable daily performance. LFP systems commonly deliver 6,000+ cycles, around 90% depth of discharge, and better thermal stability than several higher-energy chemistries, which makes them well suited for commercial, industrial, and utility stationary storage.

Q: How do I choose the right power and energy ratio for an LFP BESS? A: Start with the site duty cycle, not the battery catalog. A 1MW/2MWh system provides 2-hour discharge, while a 100kW/200kWh system serves a smaller hybrid load with the same duration; the correct ratio depends on whether the project needs peak shaving, renewable shifting, backup, or fast-response support.

Q: Are LFP batteries fireproof? A: No, LFP batteries are not fireproof, even though they are generally more thermally stable than several other lithium-ion chemistries. Safe deployment still requires UL 9540/9540A-informed design, BMS protection, thermal management, gas or smoke detection, isolation devices, and code-compliant installation practices.

Q: Which fire safety standards are most important for LFP Battery Energy Storage System projects? A: The most important standards usually include UL 9540, UL 9540A, IEC 62619, NFPA 855, and IEEE 1547-2018. Together, they cover system safety, thermal runaway propagation testing, industrial lithium battery safety, installation rules, and interconnection requirements for grid-connected projects.

Q: What should buyers ask for during technical due diligence? A: Buyers should request cell test data, cycle-life conditions, UL or IEC certificates, single-line diagrams, thermal design details, warranty terms, EMS/SCADA compatibility, and commissioning procedures. It is also important to review fault isolation logic, fire detection architecture, and any UL 9540A or equivalent propagation test evidence.

Q: How often does an LFP BESS need maintenance? A: Most systems need inspection and preventive maintenance every 6 to 12 months, depending on site conditions and warranty requirements. Typical tasks include firmware review, alarm history checks, insulation and connection inspection, HVAC performance verification, thermal trend review, and functional testing of emergency shutdown and protection systems.

Q: What is included in EPC turnkey delivery for an LFP storage project? A: EPC turnkey delivery usually includes engineering, battery and PCS supply, EMS integration, fire safety systems, switchgear or transformer interfaces, installation supervision, testing, commissioning, and documentation. This approach gives the owner a clearer performance scope than buying battery hardware alone under FOB terms.

Q: How are LFP Battery Energy Storage System projects usually priced? A: Pricing is commonly structured as FOB Supply, CIF Delivered, or EPC Turnkey. For larger programs, buyers may obtain volume discounts of 5% for 50+ units, 10% for 100+, and 15% for 250+, with payment terms often set at 30% T/T plus 70% against B/L or 100% L/C at sight.

Q: What applications are best suited to LFP BESS design? A: LFP is well suited to off-grid mining, EV charging buffers, renewable integration, commercial peak shaving, and backup power. These applications benefit from long cycle life, stable daily operation, and strong safety performance when the system is properly engineered and installed.

Q: How long is the typical warranty for an LFP BESS? A: A typical commercial or utility LFP Battery Energy Storage System warranty is 10 years, often linked to retained capacity, operating conditions, and annual throughput. Buyers should confirm whether the warranty is based on energy throughput, calendar life, end-of-life capacity, or a combination of all three.

Conclusion

For most stationary projects, LFP Battery Energy Storage System design offers the best balance of 6,000+ cycles, 90% DoD, and code-driven safety when paired with UL 9540/9540A, IEC 62619, and NFPA 855-compliant integration.

The bottom line is that LFP battery selection should be based on full-system performance, fire-tested architecture, and application-specific ROI rather than cell price alone. For B2B buyers in 2025-2026, SOLAR TODO recommends evaluating chemistry, standards, EPC scope, and warranty together before final procurement.

References

1. IEA (2024): Global energy storage and power system flexibility analysis highlighting the growing role of batteries in renewable-heavy grids.
2. IRENA (2024): Renewable integration and flexibility guidance showing storage value as variable renewable penetration increases.
3. NREL (2024): Battery storage performance and techno-economic research on degradation, dispatch, and lifecycle project economics.
4. UL Solutions (2024): UL 9540 energy storage system safety standard and related compliance guidance for integrated ESS equipment.
5. UL Solutions (2024): UL 9540A test method for evaluating thermal runaway fire propagation in battery energy storage systems.
6. IEC 62619 (2022): Secondary cells and batteries containing alkaline or other non-acid electrolytes—safety requirements for industrial lithium applications.
7. NFPA 855 (2023): Standard for the installation of stationary energy storage systems, including spacing, fire safety, and emergency planning.
8. IEEE 1547-2018 (2018): Standard for interconnection and interoperability of distributed energy resources with electric power systems interfaces.

---
